Automotive Circuit
Description:

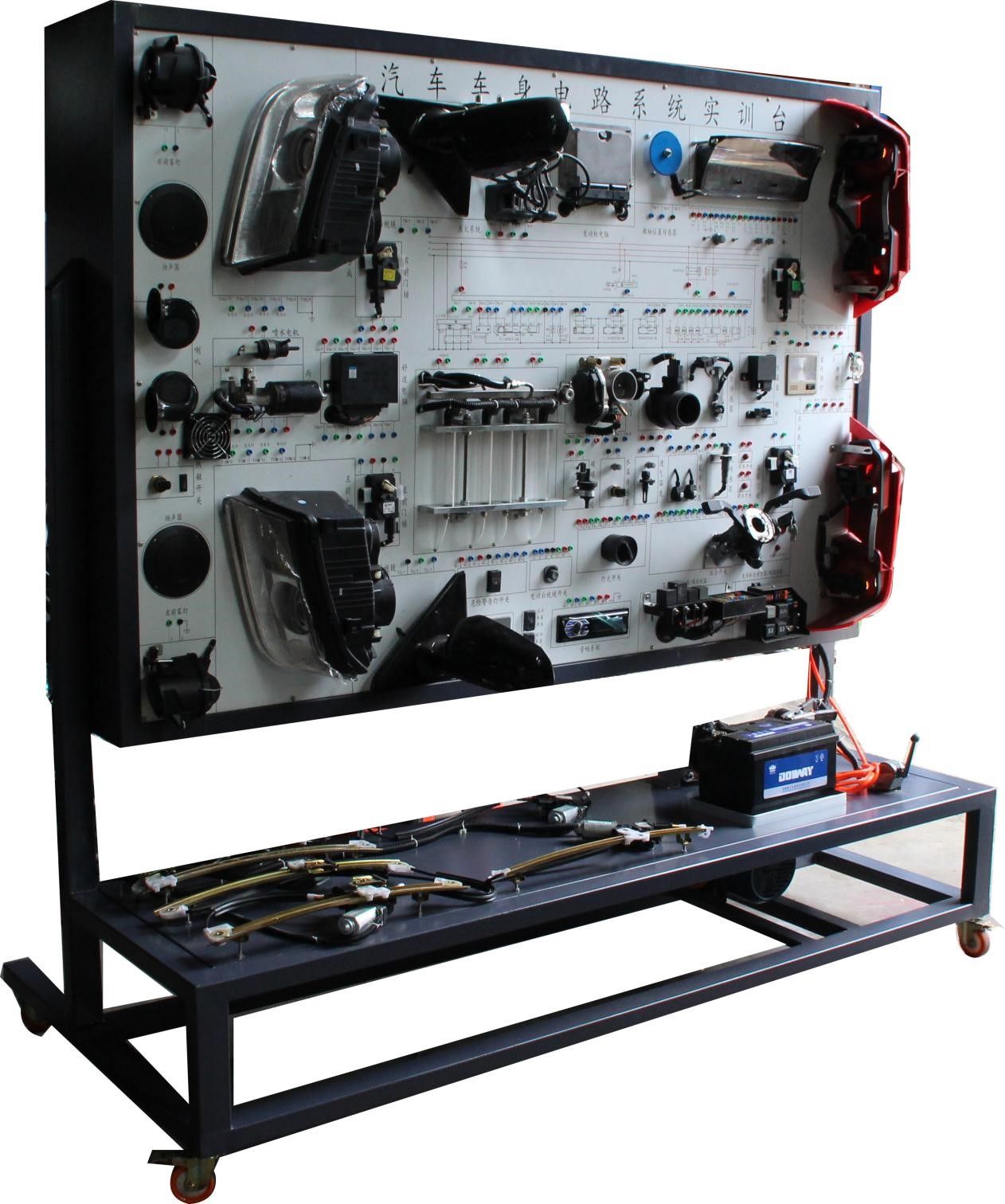

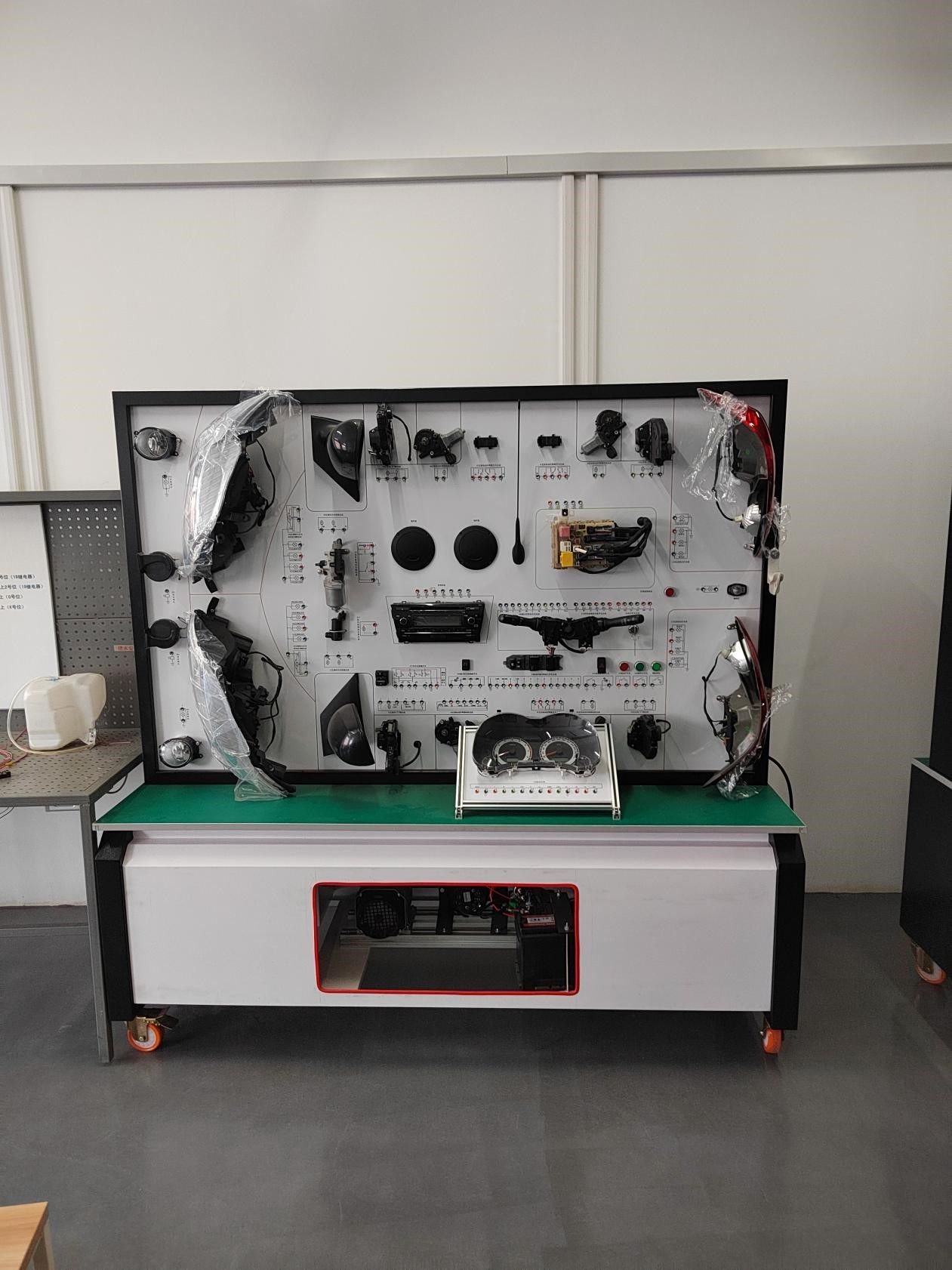

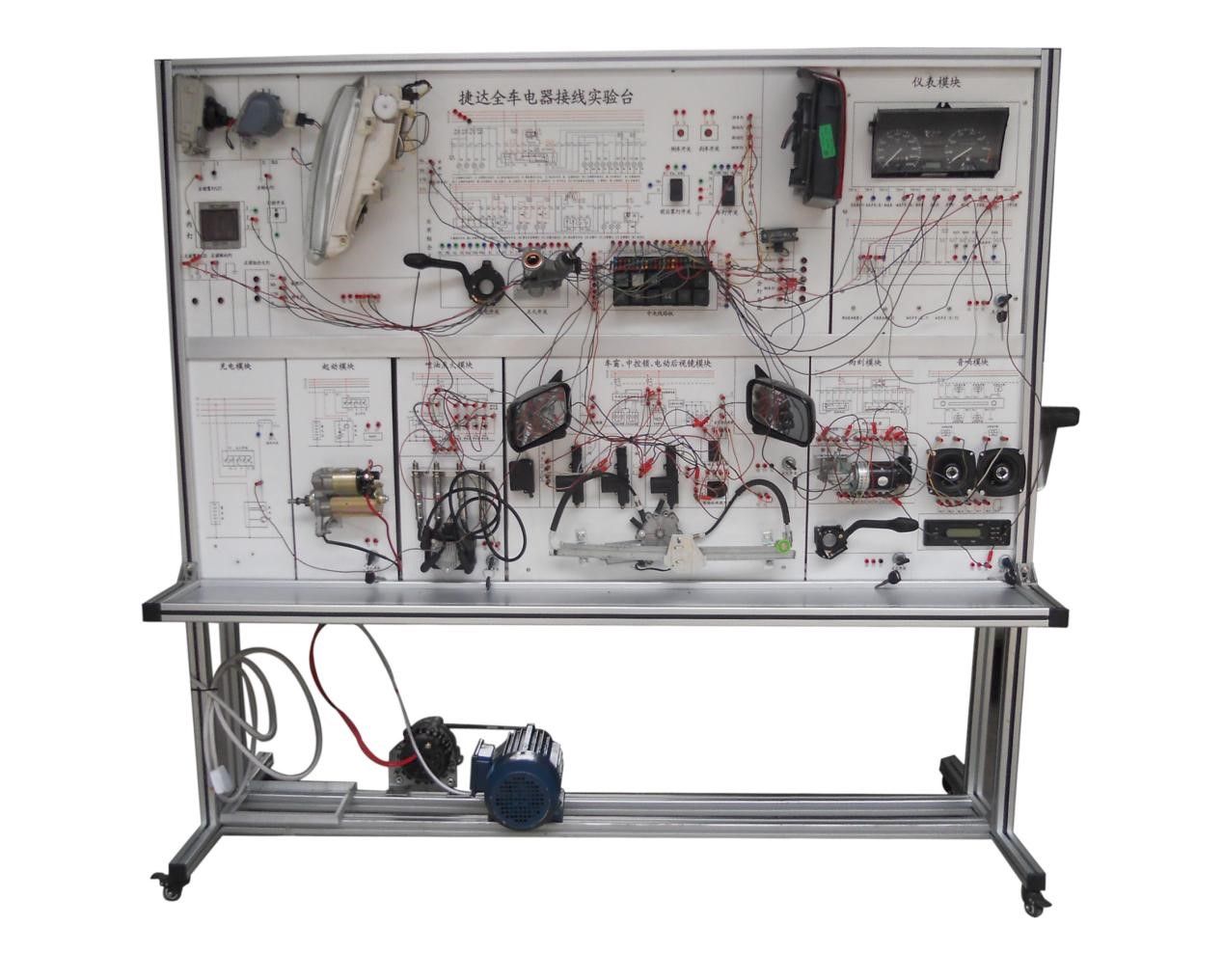

Toyota Corolla vehicle electrical appliances are composed of equipment bench, vehicle electrical parts, chassis, and detection panels, and the electrical parts are connected according to the original vehicle circuit, and the circuit diagram is made of high-quality aluminum composite boards, which can simulate and demonstrate the working state of the vehicle electrical appliances, and can be set up for fault teaching, which is convenient for the cognition, measurement and assessment of the components of the original vehicle circuit system.
The main parameters of the equipment
|
Length*width*height |
|
|
weight |
200kg |
|
Physical vehicle model |
Corolla |
|
Supply voltage |
380V AC |
|
DC supply voltage |
12V DC |
